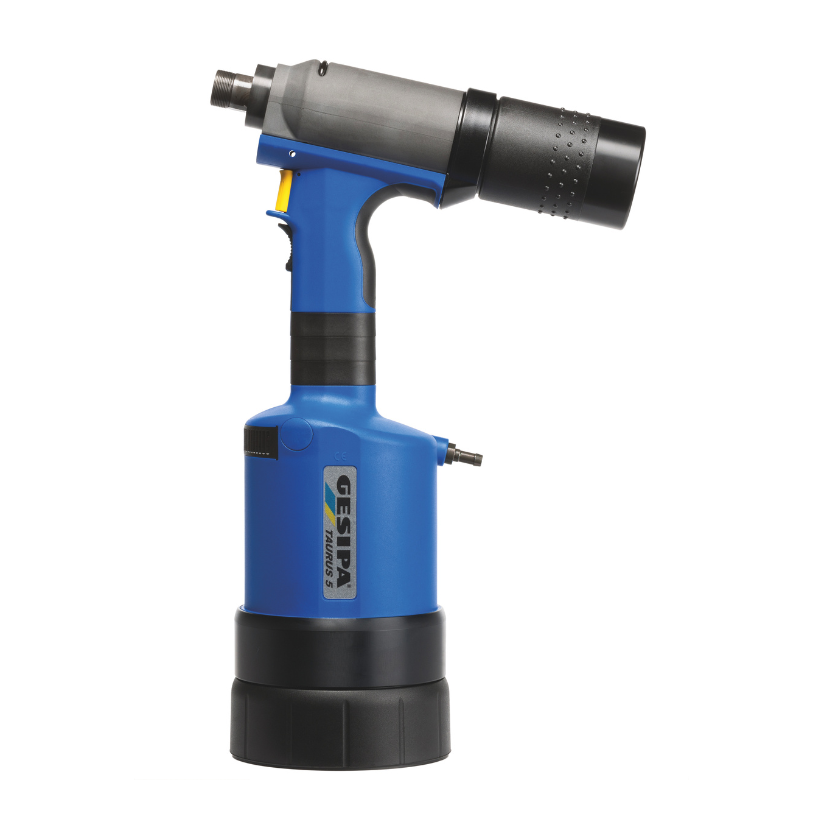

Taurus 5 Basic Tool
Taurus 5 Basic Tool
In stock
SKU: SKU:1458002
Couldn't load pickup availability
Fast dispatch
Dispatched within 1-2 working days, collection available.
Next-day delivery*
*Choose next-day at checkout for selected products.
Fast delivery
Quick delivery or collection available.
Estimated arrival
Typically 1–3 working days (UK mainland).
TAURUS riveting tools maximise cost-effectiveness while keeping environmental impact to a minimum – a true all-rounder for industry and traders. TAURUS 5 and 6 tools must be equipped with heads that are specially designed for their field of application. Production on request.
Technical Specifications
| Working range in steel | 6,40 mm |
| operating mode | Compressed air |
| operating air pressure max. | 7,00 bar |
| operating air pressure min. | 5,00 bar |
| Tool stroke | 17 mm |
| Weight carcass | 3,40 kg |
| scope of delivery | TAURUS 5 basic tool, 1 hydraulic oil bottle 100 ml, 1 oil refill can, operating instructions with spare parts list, delivered in a carton |
| Air consumption | 6,90 liter |
| hose connection | 6,00 |
| Setting force | 42.000 N |
| description of working range | Blind rivets above 6.4 mm Ø all materials and lockbolts up to10 mm Ø with corresponding pulling heads |
| description of working range | Blind rivets from 2.4 up to 3.2 mm Ø all materials and up to 4 mm Ø alu/steel (max. mandrel Ø 2.5 mm) |
