Taurus 3 Axial Eco
Taurus 3 Axial Eco
In stock
SKU: SKU:1457898
Couldn't load pickup availability
Fast dispatch
Dispatched within 1-2 working days, collection available.
Next-day delivery*
*Choose next-day at checkout for selected products.
Fast delivery
Quick delivery or collection available.
Estimated arrival
Typically 1–3 working days (UK mainland).

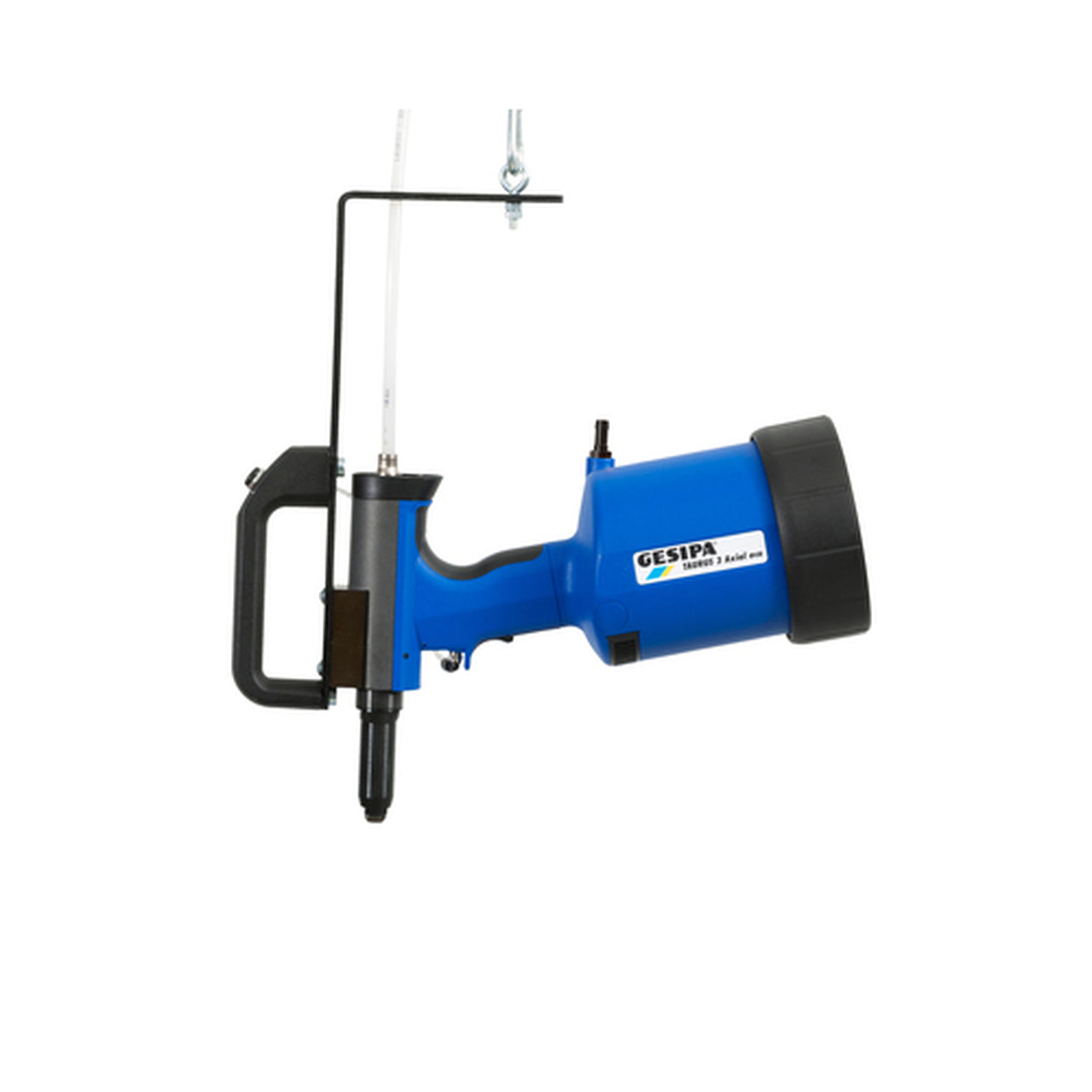

The special gun of the TAURUS 3 Axial eco can be integrated in assembly benches, installations or partially automated workstations and facilitates flexible and ergonomically efficient manual working procedures in applications with restricted access that therefore require riveting from above. In order to make sure that the parts to be riveted make contact without any gaps and that the setting head is in contact with the material, the TAURUS 3 Axial eco can also be supplied with a spring-loaded trigger system.
Technical Specifications
|
Stroke |
25 mm |
|
Working Range |
Blind rivets up to 6.4 mm Ø all materials (max. mandrel dia. 4.5 mm) |
| Working Range Alu |
6,4 mm |
| Working Range Steel |
6,4 mm |
|
Air Consumption |
4,8 Litre |
|
Air Hose Connection |
6 mm |
| Operating Mode | Compressed air |
| Setting Stroke | 18000 N |
| Operating Pressure (min) | 5 Bar |
| Operating Pressure (max) | 7 Bar |
