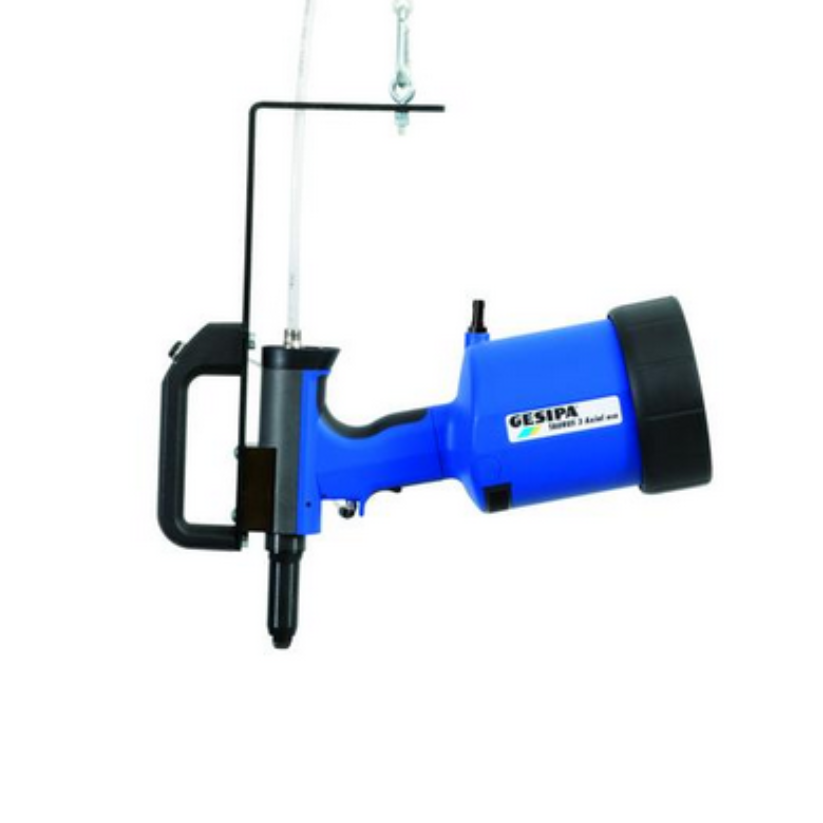

The special gun of the TAURUS 1 Axial eco can be integrated in assembly benches, installations or partially automated workstations and facilitates flexible and ergonomically efficient manual working procedures in applications with restricted access that therefore require riveting from above. In order to make sure that the parts to be riveted make contact without any gaps and that the setting head is in contact with the material, the TAURUS 1 Axial eco can also be supplied with a spring-loaded trigger system. A compressed air supply is additionally required for reliable mandrel evacuation.
Technical Specifications
| Working range in steel | 3,20 mm |
| operating mode | Compressed air |
| operating air pressure max. | 7,00 bar |
| operating air pressure min. | 5,00 bar |
| Tool stroke | 15 mm |
| Weight carcass | 2,00 kg |
| scope of delivery | TAURUS 1 Axial eco, nosepieces: 17/18, 17/20 and 17/22, maintenance wrench SW 12/14 and SW 14/17, 1 hydraulic oil bottle 100 ml, 1 oil refill can, operating instructions with spare parts list, delivered in a carton |
| Air consumption | 1,00 liter |
| hose connection | 6,00 |
| Setting force | 5.500 N |
| max. mandrel diameter | 2,50 mm |
| description of working range | Blind rivets from 2.4 up to 3.2 mm Ø all materials and up to 4 mm Ø alu/steel (max. mandrel Ø 2.5 mm) |
