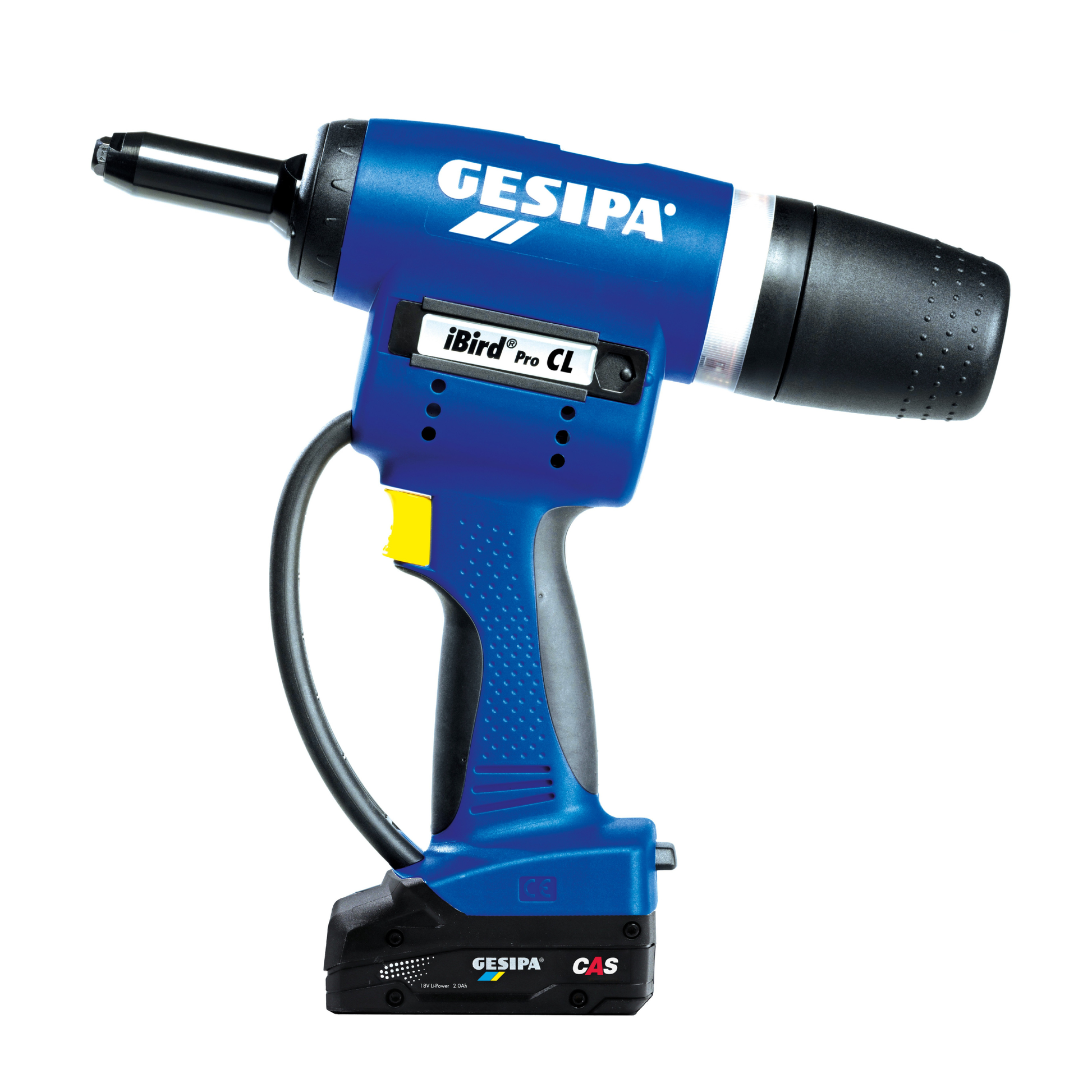

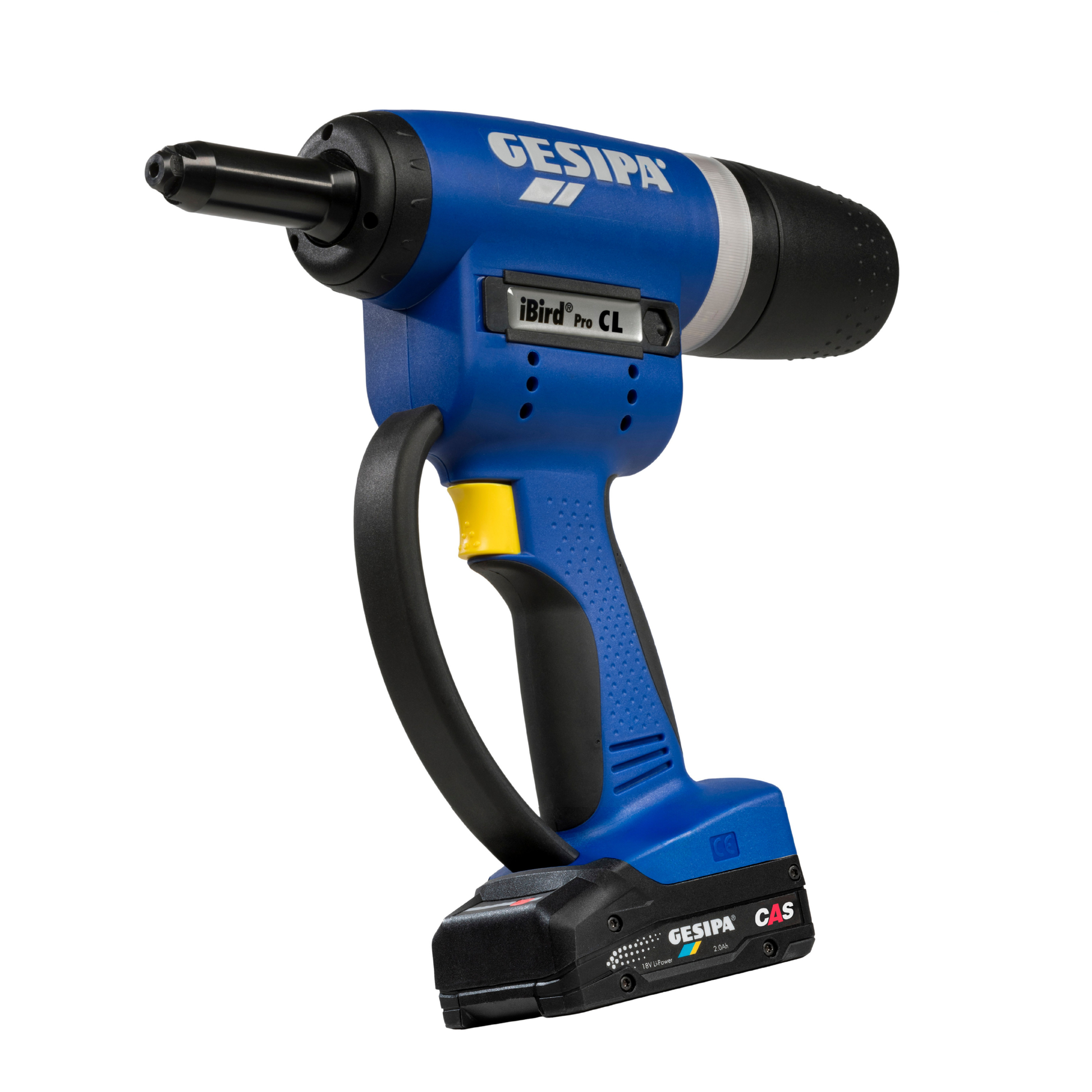

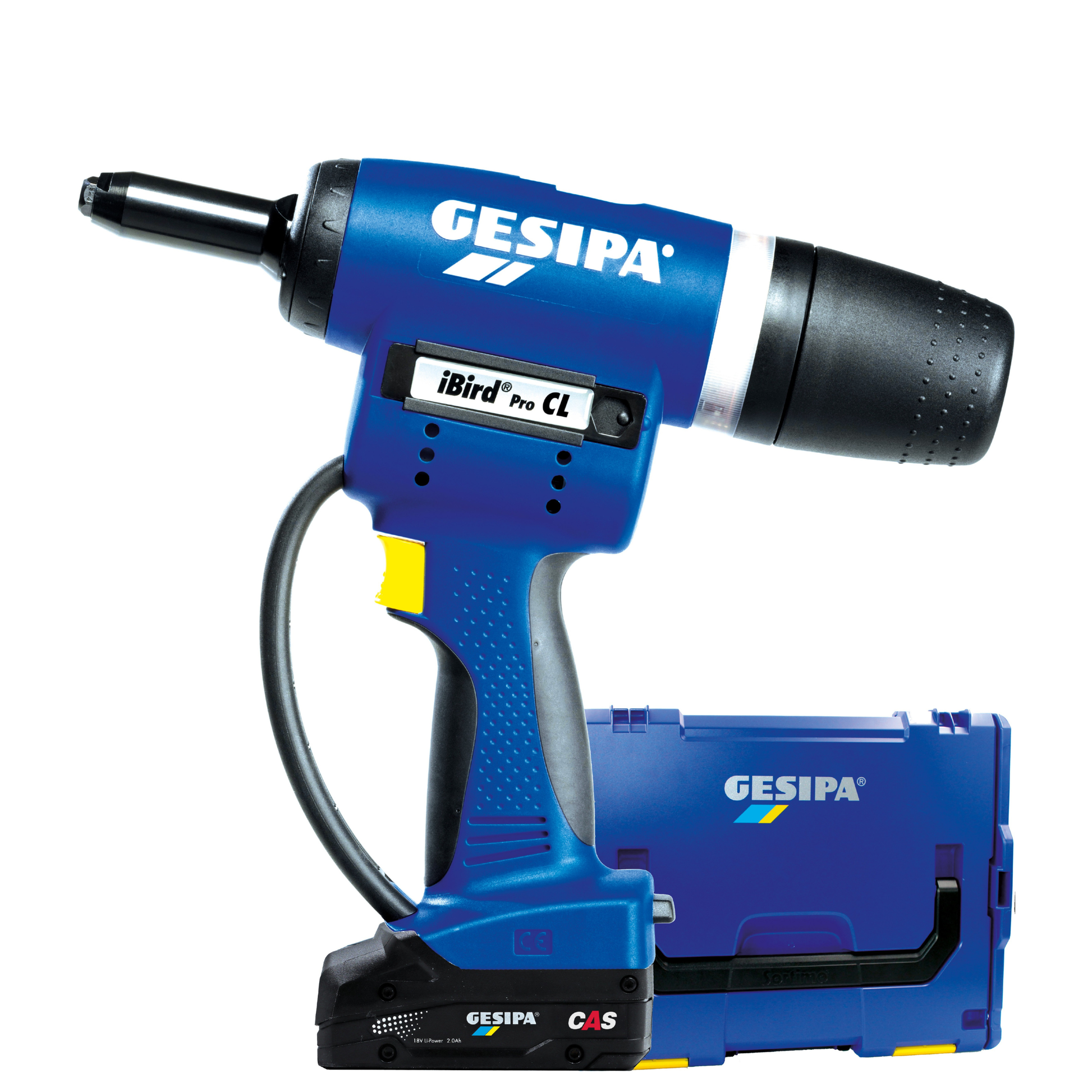

iBird® Pro CL

iBird® Pro CL

Speak to our team about smarter, connected cordless riveting for your applications.

View full details

Discover the iBird Pro CL

Watch our videos to learn about the advantages of the iBird Pro CL and how to commission your tool.

iBird Pro CL Advantages

Explore the key features and benefits of intelligent, connected cordless riveting.

Commissioning the iBird Pro CL

Follow the commissioning process and learn how to prepare your iBird Pro CL for use.

```

About iBird Pro CL

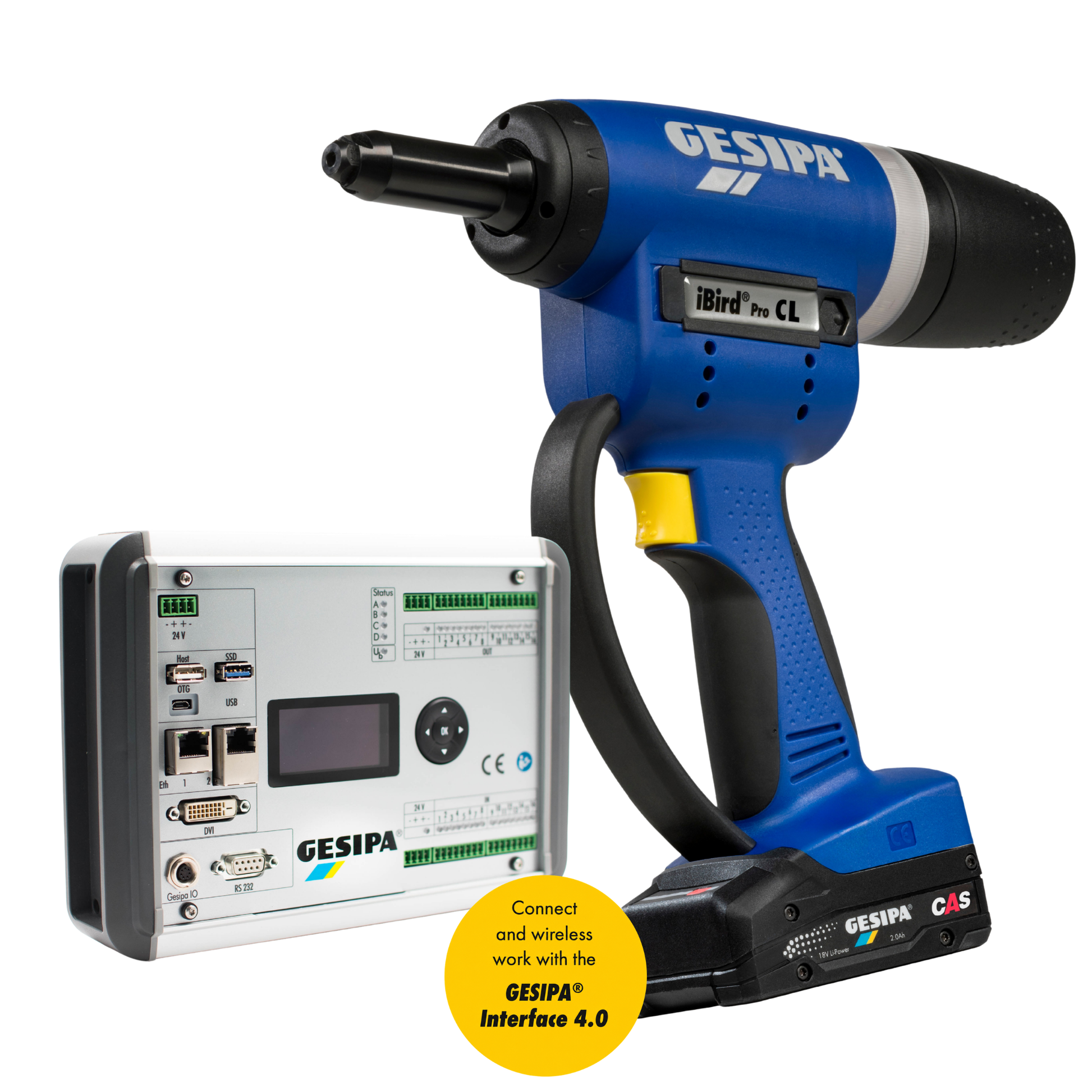

The GESIPA iBird® Pro CL is a powerful, network-enabled cordless blind riveting tool designed for modern industrial production. Combining high-performance riveting with intelligent process connectivity, it can be quickly integrated into a production environment through the GESIPA® Interface 4.0.

Using MQTT, the iBird Pro CL makes setting-process and counter data available to the customer’s own network, where it can be stored, analysed and used for production control. Bidirectional communication with systems such as a PLC enables remote tool control, digital worker guidance and the use of riveting results for downstream line-control processes. This can help manufacturers reduce errors, strengthen quality assurance, improve traceability and support preventative maintenance.

The iBird Pro CL Gold Edition delivers a maximum setting force of 20,000 N and a 25 mm stroke, powered by an efficient brushless DC motor. Its broad working range accommodates blind rivets from 2.4 to 8.0 mm, depending on material. With up to three tools able to connect through a single GESIPA Interface, the iBird Pro CL offers a scalable solution for faster, more transparent and increasingly connected riveting operations.

Technical Details

What is the iBird Pro CL?

The iBird Pro CL is a powerful cordless blind riveting tool designed for industrial applications. It combines high-performance riveting with intelligent process monitoring and wireless connectivity through the GESIPA Interface 4.0.

How does the iBird Pro CL connect to a production system?

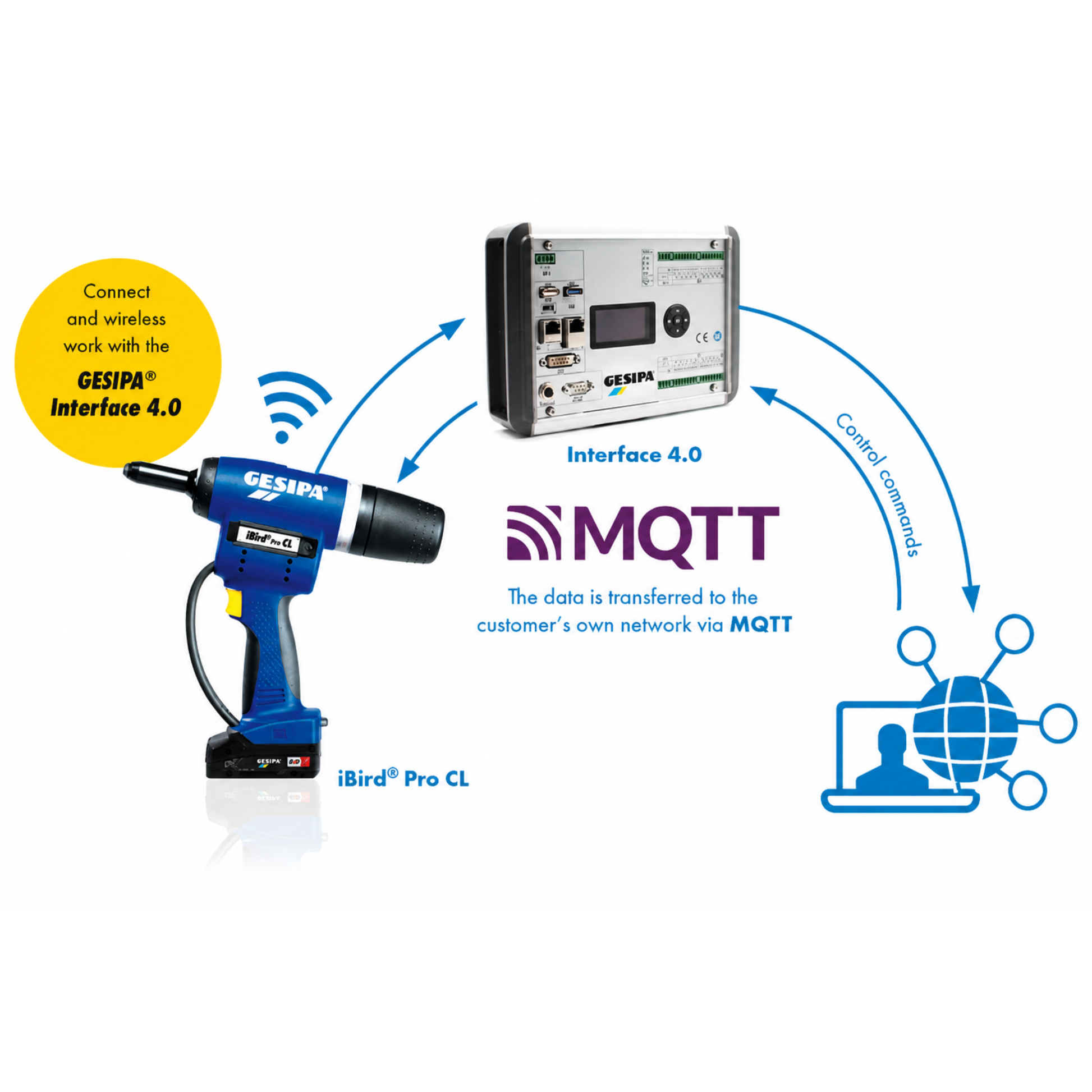

The tool connects wirelessly to the GESIPA Interface 4.0. Setting-process and counter data can then be transferred via MQTT to the customer’s own network or systems such as a PLC.

What information can the iBird Pro CL provide?

The iBird Pro CL can provide setting-process results, counter readings and maintenance information. This data can support quality control, component logging, preventative maintenance and further production-process analysis.

Can more than one iBird Pro CL connect to the same interface?

Yes. Up to three iBird Pro CL tools can be connected simultaneously to a single GESIPA Interface 4.0 using the associated iBird application.

What is the working capacity of the iBird Pro CL Gold Edition?

The Gold Edition delivers a maximum setting force of 20,000 N and a 25 mm stroke. Depending on the rivet material, it can set blind rivets ranging from 2.4 mm to 8.0 mm in diameter.
