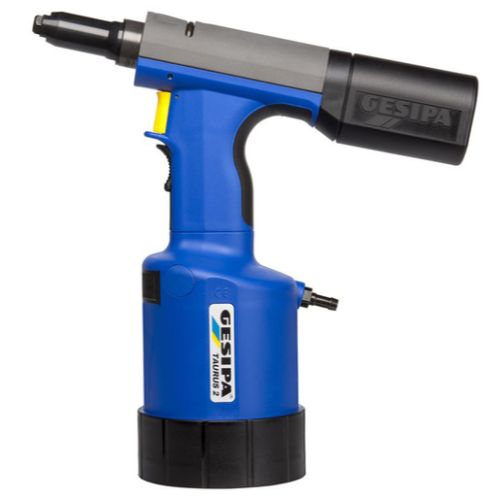

Taurus 2 with pressure trigger

Taurus 2 with pressure trigger

SKU:1457778

Regular price £2,240.07
Regular price Sale price £2,240.07 (ex VAT)
Sale Sold out

The TAURUS tool series features the unique modular system developed by GESIPA, which keeps the need for stocks of spare parts to a minimum and enables stress-free maintenance, while also providing high setting force in a lightweight tool. Users can therefore customise their TAURUS riveting tools to suit the requirements of each application. The wide range of variants offers users a great deal of flexibility. Compressed air is used twice in the TAURUS series – once for installing the rivet and again for evacuating the spent mandrel.

Technical Specifications

Stroke

18 mm
Working Range
Blind rivets up to 5 mm Ø all materials and up to 6 mm Ø alu/steel (max. mandrel dia. 3.2 mm)
Working Range Alu
6 mm
Working Range Steel

5 mm

Air Hose Connection
6 mm
Air Consumption 2,3 Litre
Operating Mode Compressed air
Setting Stroke 11000 N
Operating Pressure (min) 5 Bar
Operating Pressure (max) 7 Bar
